Loads of Knowledge on Central Sands Groundwater Pumping Impacts

I can get pretty grumpy about certain things.

In my professional life I get grumpy about claims that there is no science that groundwater pumping is drying central sands lakes, streams, and wetlands. It’s been 10 years since the Little Plover first dried, nine years after Long Lake did the same, and a dozen years or more since the public was last able to swim at the Wolf Lake county beach. And still one hears and reads the claim of “there’s just no scientific evidence connecting groundwater pumping and drying surface waters” or “we just don’t know enough about the geology and how water moves underground.”

These claims ignore that the science of groundwater flow in general has been well known for 150 (some would argue 400) years, and that we’ve had 50 years of studies in the central sands. And that the geology of the central sands is incredibly well known because few places in the world have so many holes poked in the ground, thanks to the large number of high capacity wells.

Soooo….

Knowledge_GWPump_Impacts_1I’ve started carrying a box with me that contains some of the volumes of central sands groundwater work. When the “no science” or “we just don’t know” claims come up, the box gets unpacked. People are amazed – even those who are savvy about the groundwater pumping situation.

Why the “no science” or “we just don’t know” claims? Certainly some folks are just unaware. (That’s why I’m writing this piece).

Knowledge_GWPump_Impacts_2But don’t disregard how well a willful ignorance works to cloud issues and delay change. “It’s easier to argue the science than argue about the policy,” goes the maxim. Such strategies successfully delayed tobacco reform for decades, not to mention climate change.

Without further ado, let me unpack my box and let’s visit the more important tomes on central Wisconsin groundwater, pumping effects, and geology. By the way, an amazing online literature resource is maintained by the Friends of the Little Plover River and can be found here: http://www.friendsofthelittleploverriver.org/science/

Knowledge_GWPump_Impacts_3

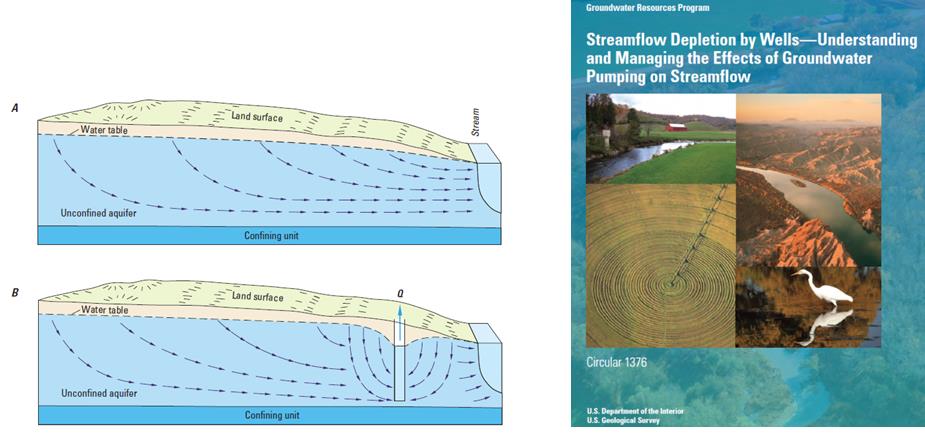

Something General: “Streamflow Depletion by Wells” – 2012.

Let’s start with this work, USGS Circular 1376, as it lays out the science of groundwater – surface water – pumping connections. Nicely illustrated, sometimes written at a layperson level, and other times for someone who has a hydrology background. A nice piece to lay in front of deniers of pumping and surface water connections.

http://pubs.usgs.gov/circ/1376/ Knowledge_GWPump_Impacts_4



“Hydrology of the Little Plover River Basin … and the Effects of Water Resource Development” – 1965.

Knowledge_GWPump_Impacts_5The classic 1965 USGS study (Water-Supply Paper 1811) that did three important things: (1) installed a test well next to the Little Plover and intentionally pumped it until a section of the river ran dry, proving the groundwater-streamflow connection; (2) estimated streamflow diversions from the amount of pumping that existed in the early 60s; and (3) made an estimate for how much streamflows would suffer from assumed groundwater development. The authors underestimated how much irrigation would develop in the basin, and did not anticipate pumping for municipal and industrial purposes. A movie was made of the work done in this report, one that has been viewed by generations of hydrologists!

http://pubs.usgs.gov/circ/1376/

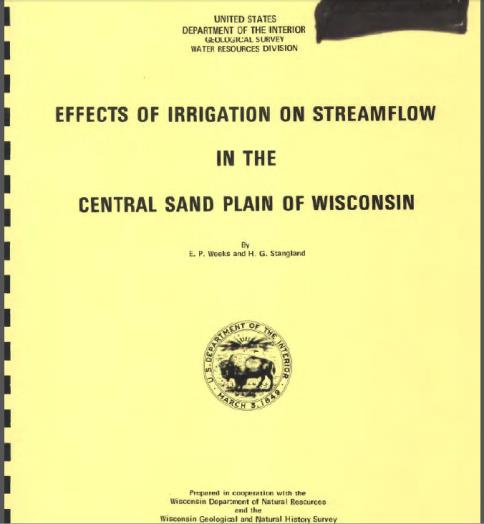

“Effects of Irrigation on Stream flow in the Central Sand Plain”- 1971.

Knowledge_GWPump_Impacts_6The grand-daddy of all pumping-impact work in the central sands, it was the earliest study that predicted widespread lake and stream impacts if irrigation pumping were to go unmanaged. The Plainfield area was the epicenter of this work. The authors, who went on to have long and prosperous careers as hydrologists, built tools that could have been used at the time for managing groundwater if proactive thinkers had gotten ahead of the curve.

Alas, this work went ignored for decades.

http://pubs.usgs.gov/of/1970/0362/report.pdf



“Knowledge Development for Groundwater Withdrawal … around the Little Plover River…” 2009.

Knowledge_GWPump_Impacts_7The first of several recent studies of pumping impacts in the Central Sands, funded by DNR. The study found that even compared with flows during the historic droughts of the late 1950s and early 1960s, Little Plover flows in the modern era are exceedingly low. Weather cannot explain the modern low flows. A groundwater model was constructed of the region (one that has just been replicated by the WGNHS and USGS with more DNR funding and produces similar, if not the same, results.) Groundwater pumping is the cause of stressed Little Plover flows, with irrigation being the main pumping influence, followed by Village of Plover and the Whiting wellfield.

http://www.uwsp.edu/cnr-ap/watershed/Documents/littleplover2009.pdf

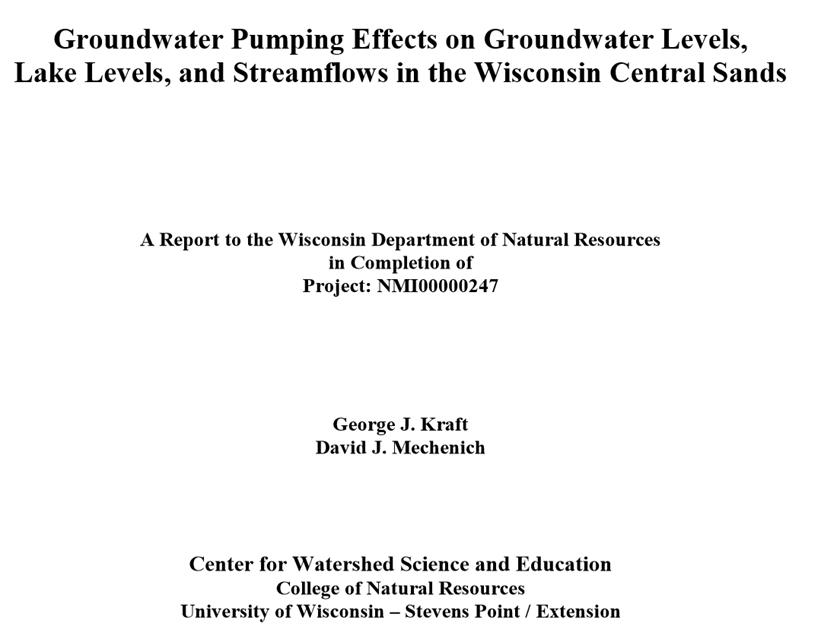

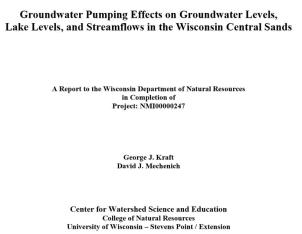

“Groundwater Pumping Effects on Groundwater Levels, Lake Levels, and Streamsflows in the Wisconsin Central Sands.” 2010.

Knowledge_GWPump_Impacts_8This study concretely tied groundwater pumping impacts to the entirety of the central sands. It found that weather was in no way dry during this time when lakes and streams were going dry, and used statistics and modeling to show how impacted the central sands is by its > 2000 high capacity wells. Scientific peer review was provided by university, Wisconsin Geological and Natural History Survey, and USGS scientists.

http://www.uwsp.edu/cnr-ap/watershed/Documents/gwpumpcentralsands2010.pdf

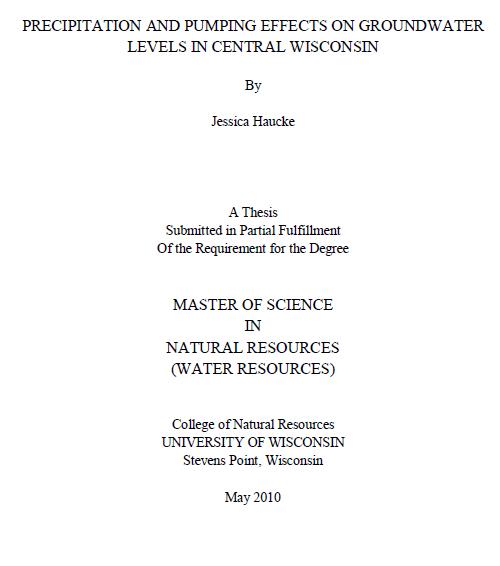

Precipitation and Pumping Effects on Groundwater Levels in Central Wisconsin” 2010.

Knowledge_GWPump_Impacts_9A Master’s thesis that examined the connection between precipitation and water levels. A lack of precipitation could not explain central sands stressed water conditions, and without pumping, water levels today would be expected to be feet higher in stressed areas. Pumping was the only plausible cause of depressed water levels.

http://www.uwsp.edu/cnr-ap/watershed/Documents/haucke_2010.pdf

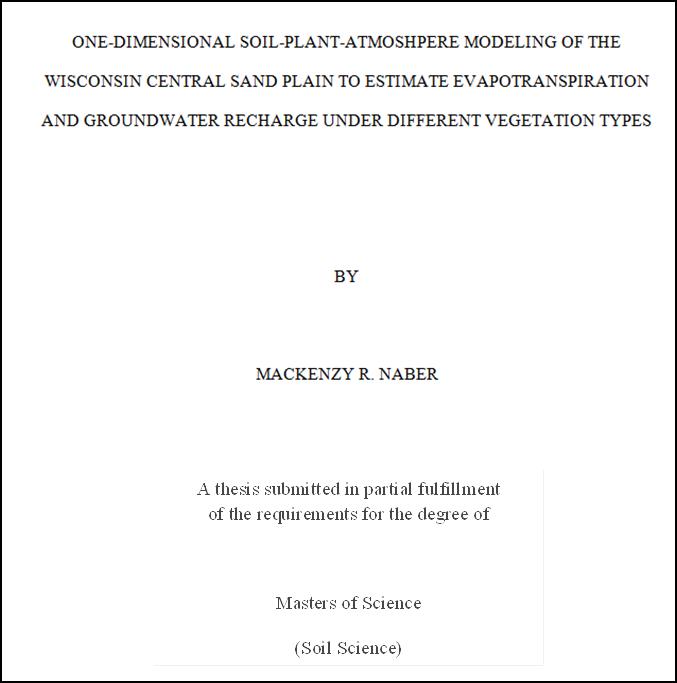

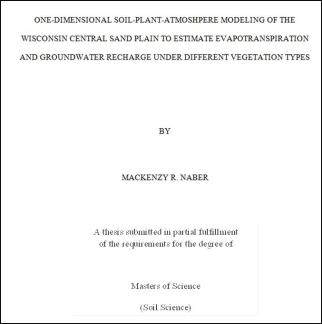

“One-Dimensional Soil-Plant-Atmosphere Modeling of the Wisconsin Central Sand Plain …” 2011.

Knowledge_GWPump_Impacts_10A UW-Madison Master’s thesis that examined water consumption by trees, grasslands, and irrigated crops, concluding that irrigated crops use more water in most years. In particularly wet summers, water consumption by the three, when irrigation is suppressed by adequate rainfall, may be similar.

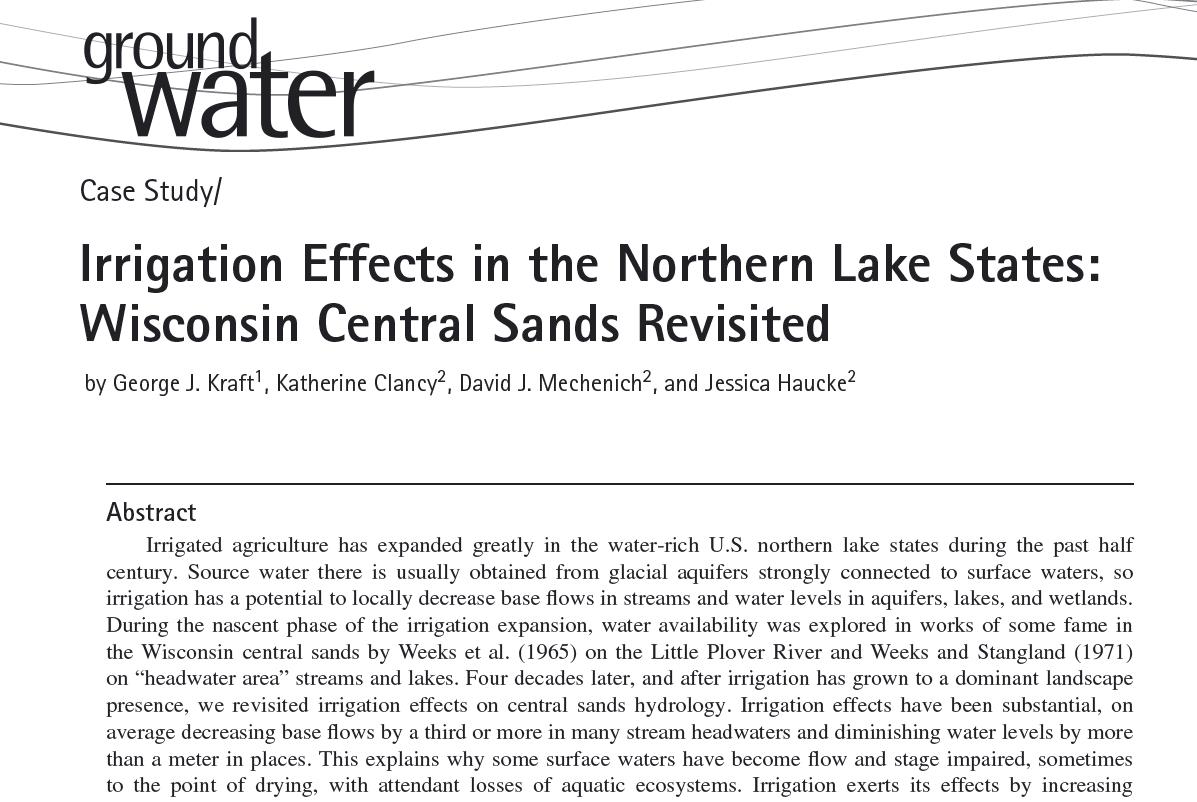

“Irrigation Effects in the Northern Lake States: Wisconsin Central Sands Revisited” 2012.

Knowledge_GWPump_Impacts_11Published in the international scientific journal Ground Water, this study summarized and added to the 2009 and 2010 Little Plover and Central Sands studies discussed above.

http://onlinelibrary.wiley.com/doi/10.1111/j.1745-6584.2011.00836.x/full

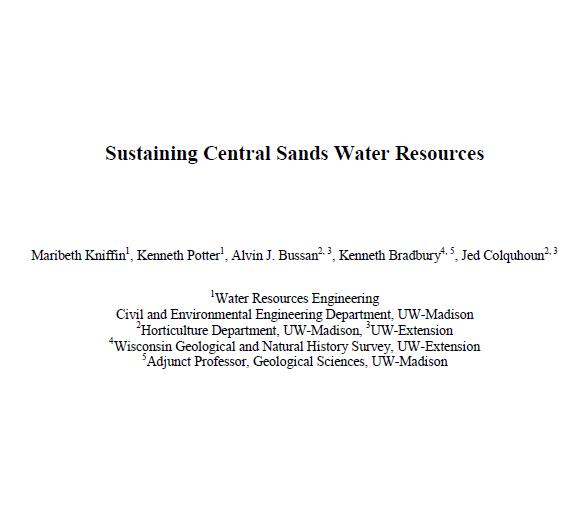

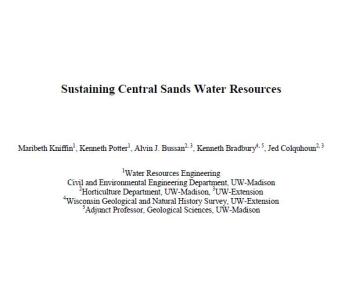

“Sustaining Central Sands Water Resources” 2014.

Knowledge_GWPump_Impacts_12Completed by a graduate student at UW-Madison with oversight from hydrology and agricultural scientists, this reviewed and analyzed previous work. It concluded that many studies predicted or demonstrated that central sands groundwater pumping is affecting lake and stream levels, and no studies found other causes.



Updates

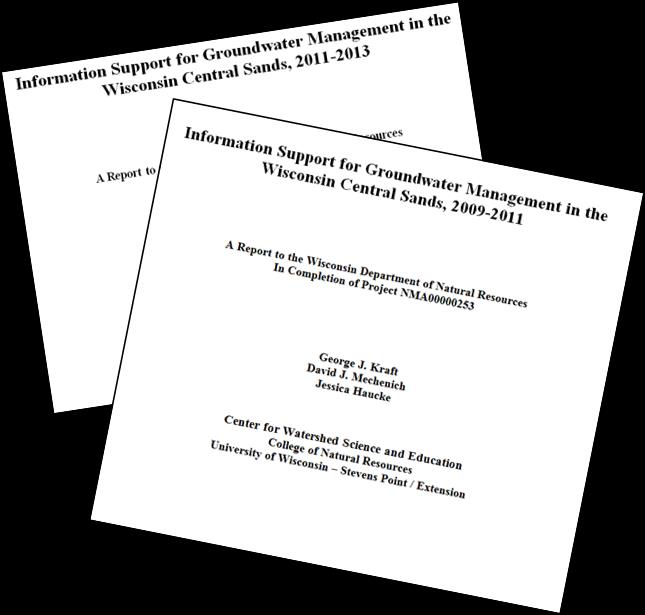

Knowledge_GWPump_Impacts_13Additional work continues to be ongoing and adds to the background knowledge of what is known about central sands groundwater.



Geology and Groundwater Conditions in Central Sands Counties

We’ve long had USGS and Wisconsin Geological and Natural History reports on central sands counties. Too many to enumerate, if you want to find them google the county of interest, “groundwater,” “geology, ” and see what pops up!

Knowledge_GWPump_Impacts_14
